Computing the Radar Cross Section of a Perfectly Conducting Sphere
Model ID: 10332

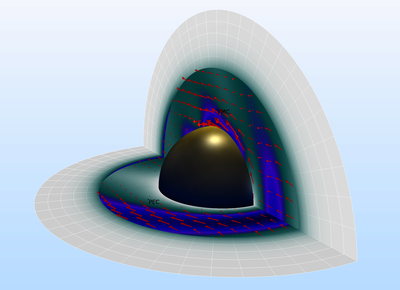

A classic benchmark problem in computational electromagnetics is to solve for the radar cross section (RCS) of a sphere in free space illuminated by a plane wave. This model solves for the RCS of a metallic sphere that has a very high conductivity, which can be treated as a material with infinite conductivity. Results are compare to the analytic solution, and agreement is shown.
This model was built using the following:RF Module
