Flow Between Parallel Plates

Application ID: 232

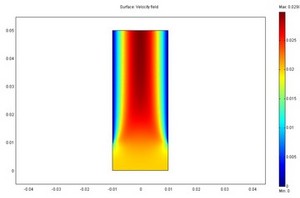

This example models the developing flow between two parallel plates. The purpose is to study the inlet effects in laminar flow at fairly moderate Reynolds numbers, in this case around 40.

The problem might seem of academical nature but it is actually fairly common in catalytic reactors, heat exchangers, micro reactors etc.

Symmetry along the thickness of the domain helps to reduce the three-dimensional problem to two dimensions. In this reduction, the variations of the flow in the direction perpendicular to the figure are neglected.

This application was built using the following:

COMSOL Multiphysics
