Cascade Impactor

Application ID: 103531

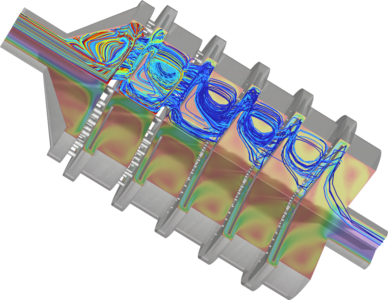

This example simulates particles in a range of sizes that move through different levels of a cascade impactor. A cascade impactor is an inertial particle separation device consisting of multiple levels separated by collecting plates and nozzles. Particle-laden air enters from the top inlet and passes through progressively finer nozzles. A 2D histogram is used to record the range of particle sizes that hit each stage of the cascade impactor.
