Transient Conduction in a Wall, Lumped Thermal System

Application ID: 78341

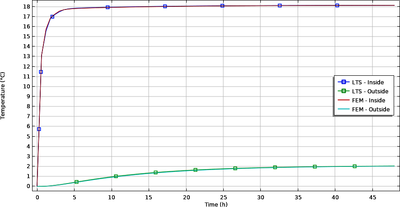

This model performs a transient analysis of the temperature through a house wall. The wall is formed of different layers corresponding to the structure, insulation and plaster. On the exterior and the interior, the wall is exposed to thermal radiation and convective cooling. The results obtained using the Lumped Thermal System interface are compared with results obtained with a FEM approach.
