Room Impulse Response of a Smart Speaker

Application ID: 115561

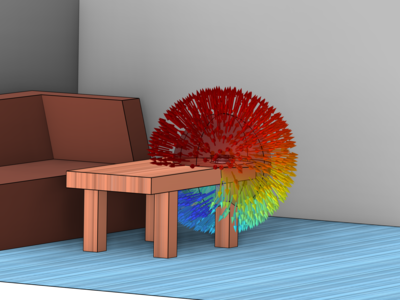

This model combines pressure acoustics and ray acoustics to perform a full frequency range analysis of the room impulse response of a small smart speaker. The source characterization in the ray tracing model is based on a full multiphysics model of the transducer and compares two source couplings: the Release From Exterior Field feature and the Release from Pressure Field feature to set up the transducer source.

A more detailed description of this model can be found in the blog post "Full Acoustic Room Impulse Response of a Small Smart Speaker".
