Inductance profile

Posted 09.06.2018, 13:38 GMT-4 Low-Frequency Electromagnetics Version 5.3a 3 Replies

Rute Pinelo
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

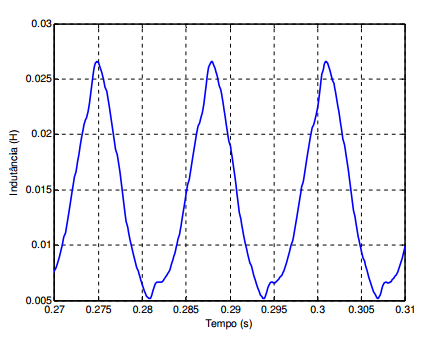

Hello, I am moduling a switched reluctance generator, and I need to get a graph that give me a inductance profile of this machine. Attached goes a examble graph that I want obtain. How can I get that graph with comsol? Could anyone help me?

Regards, Rute Pinelo

Attachments:

3 Replies Last Post 12.06.2018, 03:33 GMT-4
Morgane
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 11.06.2018, 05:59 GMT-4

Hello,

I have never used that physic. But if I were you, I would right clic the Results node, then select 1D Plot Group. Now right clic on the new 1D Plot group Node, choose Global . Click on Global and in its Settings section, you will be able to select the quantity you wish to plot by clicking on the + button.

Hope it helps !

Hello, I have never used that physic. But if I were you, I would right clic the Results node, then select 1D Plot Group. Now right clic on the new 1D Plot group Node, choose Global . Click on Global and in its Settings section, you will be able to select the quantity you wish to plot by clicking on the + button. Hope it helps !
Rute Pinelo
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 11.06.2018, 09:35 GMT-4

Hello Morgane, thanks for reply but on the +button not show me the result that I want. I would like obtain only the inductance of a coil in a complete revolution of the generator...

Hello Morgane, thanks for reply but on the +button not show me the result that I want. I would like obtain only the inductance of a coil in a complete revolution of the generator...
Morgane
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 12.06.2018, 03:33 GMT-4

Hello,

Maybe I don't understand your model and what you want. Can you can share your file ?

Hello, Maybe I don't understand your model and what you want. Can you can share your file ?
