Create a 1D line Plot of a 3d surface
Posted 23.08.2012, 07:23 GMT-4 Results & Visualization 0 Replies
Please login with a confirmed email address before reporting spam
I'am trying to do a simple simulation with a 3d hollow half sphere that is heated on the inner surface.
The heating leads to a displacement which i want visualise in a 1d line plot. The plot should be a vertical section through the sphere (see attached file) , but i only want the outer surface to be visualised as a line. So just using a cutplane doesn't work.

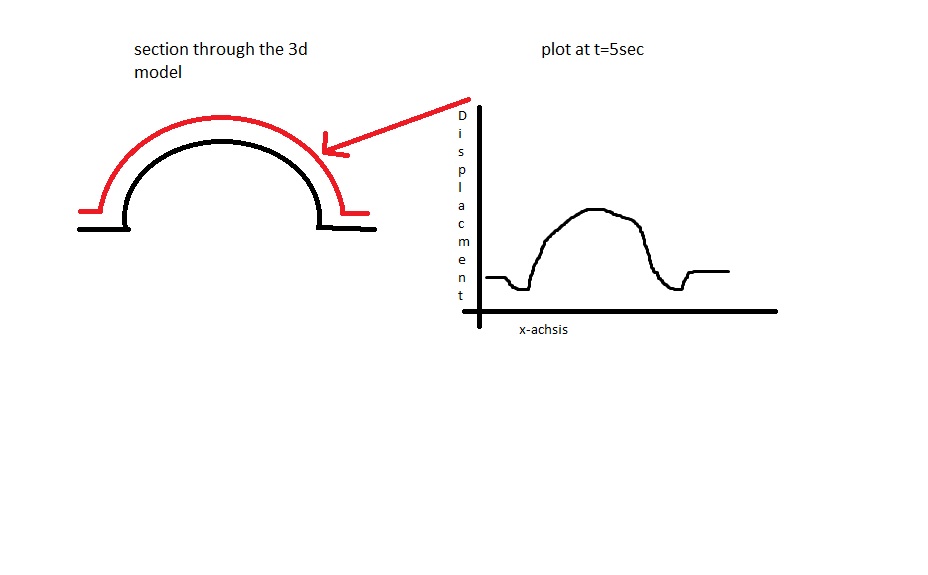

I attached a little scheme which hopefully helps you to understand my model and what i want.
It was easy to create the plot i wanted in a 2d model, but unfortunatly this i no longer an option.
i really hope anyone can help me with this little problem!
Best regads
Attachments:
Hello Laticau
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
