Unexpected Displacement Change in Gear and Rack Calculations
Posted 14.01.2025, 00:36 MEZ Structural Mechanics, Structural Dynamics Version 6.2 1 Reply
Please login with a confirmed email address before reporting spam
Hi everyone,
When analyzing a simple straight gear and rack model, I applied a fixed displacement to one of the gears to drive the entire system. The goal was to validate the correctness of the model.

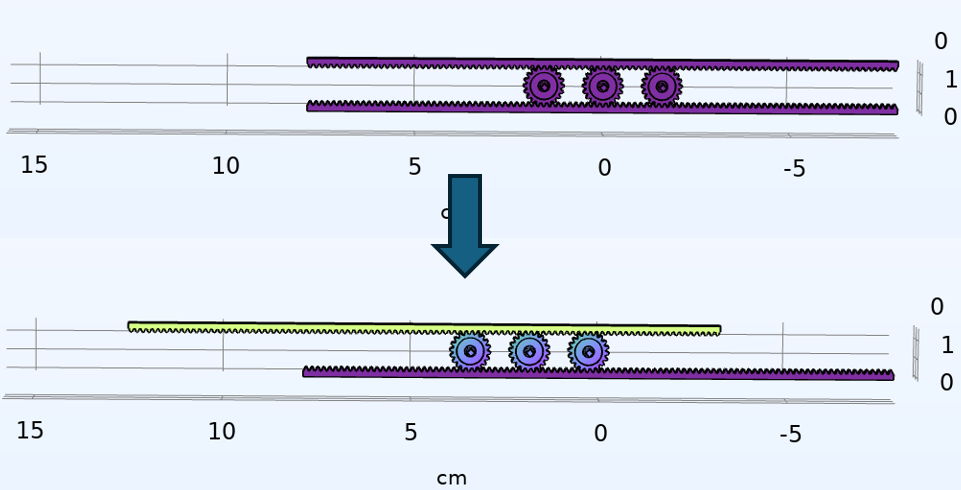

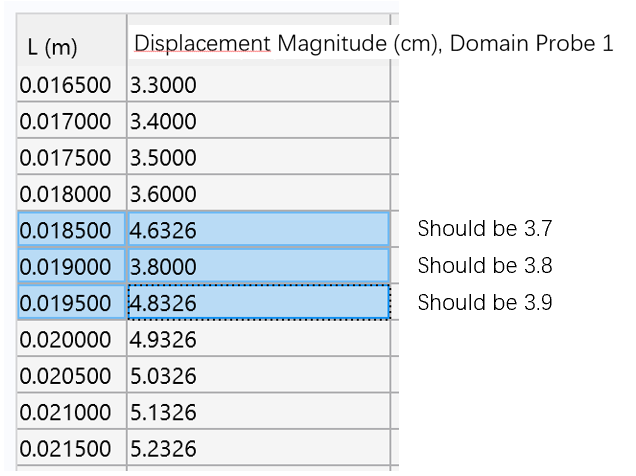

However, I encountered Unexpected Sudden Displacement Changes, as shown in the figure below. For reference, a sketch of the system is also attached.
Please let me know if you need any additional information. I would greatly appreciate any guidance on resolving this issue. Thank you!!
Attachments:
Please login with a confirmed email address before reporting spam
I think you would have to attach a (possibly simplified) copy of your model. It is almost impossible to guess what is causing this.
-------------------Henrik Sönnerlind
COMSOL
