Electric interference
Posted 01.07.2025, 04:24 GMT-4 Studies & Solvers, Electric Discharges Version 6.3 0 Replies
Please login with a confirmed email address before reporting spam
Dear Experts,
I got the following error message:
- Parameters: "time","0"
The following feature has encountered a problem: - Feature: Time-Dependent Solver 1 (sol75/t1)
Failed to find consistent initial values.
Last time step is not converged.
The physics: Electric currents
The equation I used: (the polarity changes)
Io*sin(2*pi*f1*t)
- Io*sin(2*pi*f2*t)
Io*sin(2*pi*f1*t)
- Io*sin(2*pi*f2*t)

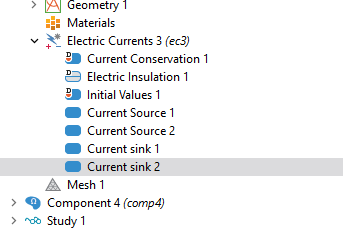

See at physics.png

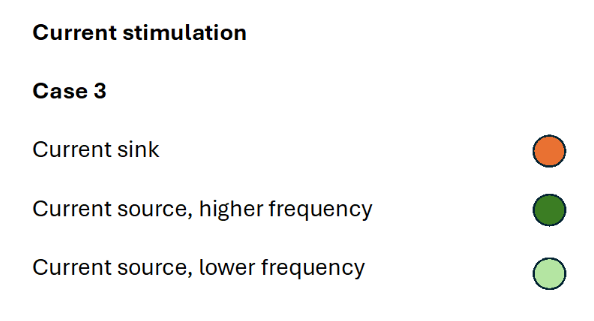

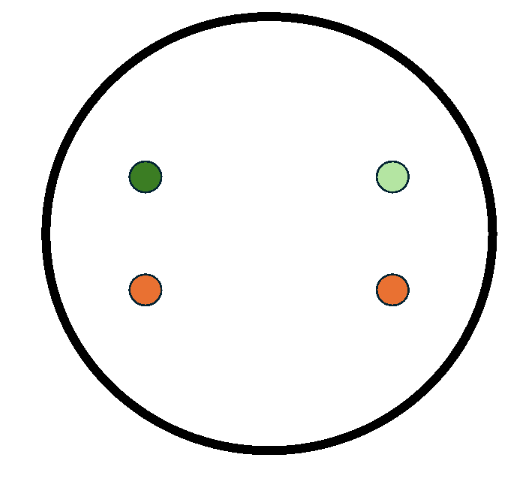

Note: though the are two current sinks under the electric current, these are Current source as well. (I know, in Electrochemistry Module there is a designated module to current sink, but I do not have access to it. )
The solutions that did not work:
- A Stationary step was added before the Time dependent study
- Using the following equations to avoid the value 0:
- Io*sin(2*pi*f*t)*(1 - exp(-t/tau))
- Io*sin(2*pi*f*t)*(t<ramp_time) + Io*sin(2*pi*f*t)*(t>=ramp_time)
- Changing the time range
- redo the whole study/physics
Attachments:
