Die Applications Galerie bietet COMSOL Multiphysics® Tutorial- und Demo-Application-Dateien, die für die Bereiche Elektrik, Struktur, Akustik, Fluid, Wärme und Chemie relevant sind. Sie können diese Beispiele als Ausgangspunkt für Ihre eigene Simulationsarbeit verwenden, indem Sie das Tutorialmodell oder die Demo-Application-Datei und die dazugehörigen Anleitungen herunterladen.
Suchen Sie über die Schnellsuche nach Tutorials und Apps, die für Ihr Fachgebiet relevant sind. Beachten Sie, dass viele der hier vorgestellten Beispiele auch über die Application Libraries zugänglich sind, die in die COMSOL Multiphysics® Software integriert und über das Menü File verfügbar sind.
Parameter Optimization of a Tesla Microvalve
The topology optimized Tesla microvalve is used as inspiration for a parametrized geometry. The optimization of this geometry takes erosion and dilation of the geometry into account by optimizing over a parametric sweep. In this example the optimization is driven by the worst of the 3 ... Mehr lesen
Shape Optimization of a Tesla Microvalve
The topology optimized Tesla microvalve is used as an inspiration for an initial geometry. Second order Bernstein polynomials are used to perturb the shape of the geometry. The resulting design is remeshed in the deformed configuration and the performance is investigated for a range of ... Mehr lesen
Shape Optimization of a Plate Heat Exchanger
This model demonstrates how to use the built-in shape optimization functionality to improve the performance of a plate heat exchanger. The optimization reduces the path immediately in front of the inlets and outlets to increase the length of typical streamlines. This leads to a improved ... Mehr lesen
Broadband Optimization of Microstructured Antireflecting Coating
This model showcases the broadband optimization for the Microstructured antireflecting coatings that are modeled in the model (#99011). Following are the parameters that are optimized: Rectangular microstructure: Height and width of the rectangular microstructure. Pyramidal ... Mehr lesen
Geometry optimization of a 3D complex-shaped coil for induction heating
The model features the optimization of the geometry of a complex-shaped coil similar to those for induction heating applications. The geometry if fully built and parametrized in COMSOL Multiphysics (taking advantage of Geometry Parts; geometrical construction requires Design Module). The ... Mehr lesen

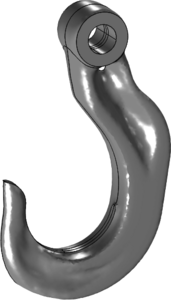

Exporting and Importing a Topology-Optimized Hook
The model studies optimal material distribution in a hook, which is symmetric about the z plane and consists of a linear elastic material, structural steel. It is subjected to two distributed edge load cases: One at the tip of the hook and one along its lower inner curve. The geometry is ... Mehr lesen
Topology Optimization of a Drone
Topology optimization for low volume fractions in 3D follows the same methodology as in 2D for medium volume fractions. The only difference is the need for iterative solvers. This model demonstrates topology optimization of a drone for a volume fraction of 12.5 %, while considering two ... Mehr lesen
Topology Optimization of a District Heating Network
The layout of a district heating network is designed using topology optimization. Mehr lesen

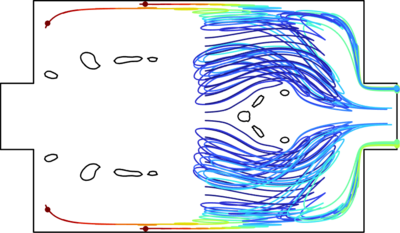

Optimization of a Tesla Microvalve with Transient Flow
This example performs a topological optimization for a Tesla microvalve for an oscillating pressure drop. A Tesla microvalve inhibits backward flow using friction forces rather than moving parts, and therefore the objective is to maximize the average flow rate. The design can be ... Mehr lesen
Multistudy Optimization of a Bracket
In this shape optimization example, the mass of a bracket is minimized by changing the size and position of a number of geometrical objects. The requirements give limits both on the lowest natural frequency, and on the maximum stress in a static load case. This means that results from ... Mehr lesen
