Axial Magnetic Bearing Using Permanent Magnets
Application ID: 14367

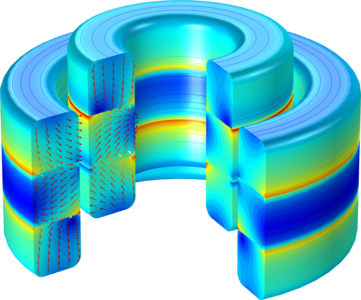

Permanent magnet bearings are used in turbo machinery, pumps, motors, generators, and flywheel energy storage systems, to mention a few application areas; contactless operation, low maintenance, and the ability to operate without lubrication are some key benefits compared to conventional mechanical bearings. This model illustrates how to calculate design parameters like magnetic forces and stiffness for an axial permanent magnet bearing.
This model example illustrates applications of this type that would nominally be built using the following products:AC/DC Module
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Spezifikationstabelle and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
