Double Gauss Lens Image Simulation

Application ID: 88661

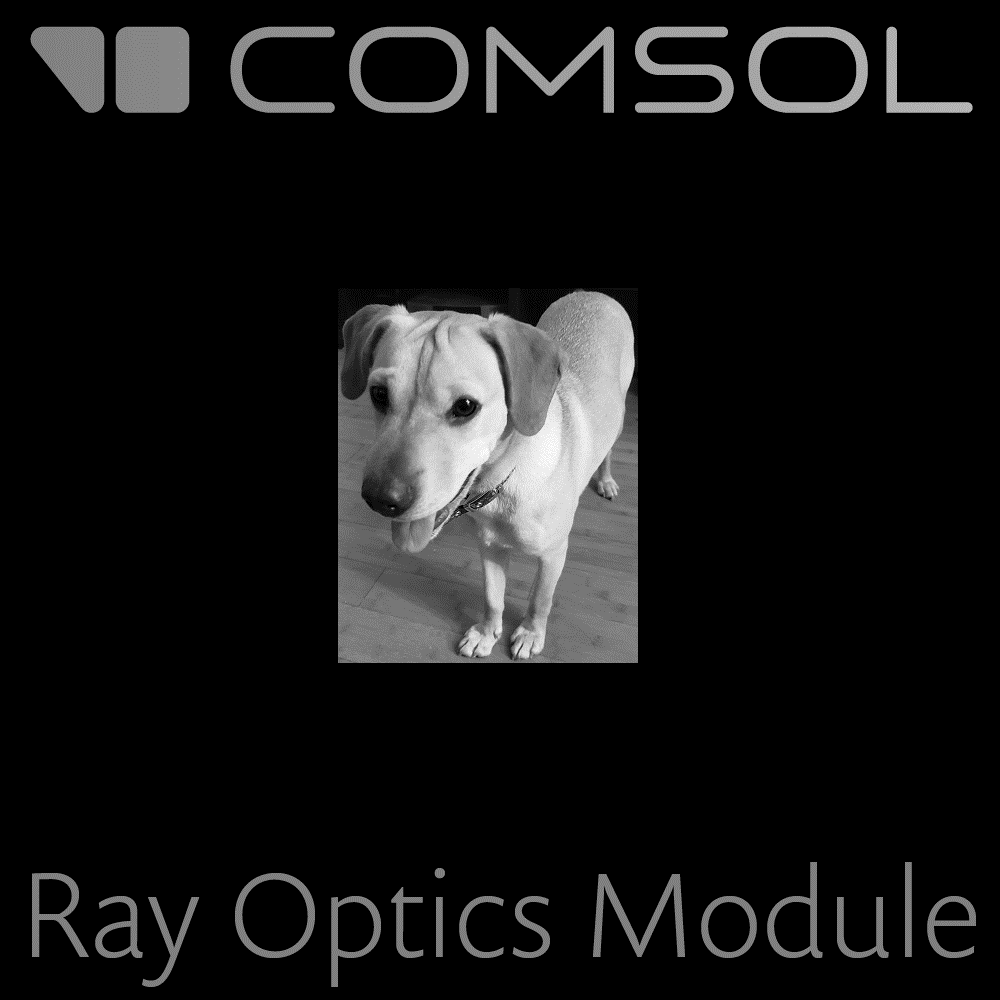

This example demonstrates how to import a bitmap which can be used to simulate an image using ray tracing. The example is based on the Double Gauss Lens tutorial from the Ray Optics Module Application Library.

The first study has been modified so that the Spot Diagram "auto-focus" tool can be used to determine the location of the finite conjugate focal plane. The second study allows rays to be launched from an object surface based on the imported bitmap. These rays are then accumulated on the focal surface to create an image.
