Isotropic-Anisotropic Sample: Elastic Wave Propagation

Application ID: 78231

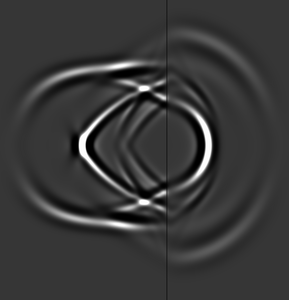

In this 2D tutorial, a test sample consists on one side of an isotropic material and on the other side of a heterogeneous anisotropic material (a transverse anisotropic zinc crystal). Elastic waves in the sample are excited by a point-like force. The model is solved with the Elastic Waves, Time Explicit physics interface.
