Ray Release Based on a Plane Electromagnetic Wave

Application ID: 76731

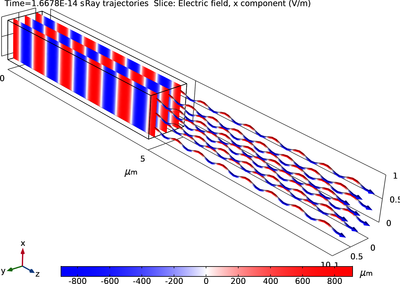

This tutorial shows how to set up a ray release based on the incident electric field at a boundary. First the Electomagnetic Waves, Frequency Domain interface is used to solve for the electric field of a plane wave. Then rays are released with initial intensity and polarization matching that of the electric field at the releasing boundary.
