Single Edge Crack
Application ID: 988

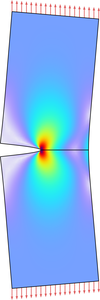

This model deals with the stability of a plate with an edge crack that is subjected to a tensile load. To analyze the stability of exciting cracks, fracture mechanics can be utilized.
A commonly used parameter in fracture mechanics, used to predict if a specific crack will cause the plate to fracture, is the so-called stress intensity factor KI. When this calculated value becomes equal to the critical fracture toughness of the material, KIc, (a material property) then fast, usually catastrophic fracture occurs. In this model, you determine the stress intensity factor KI using the so-called J-integral.
This model example illustrates applications of this type that would nominally be built using the following products:Structural Mechanics Module
