Mixed-Mode S-Parameters Analysis

Application ID: 74961

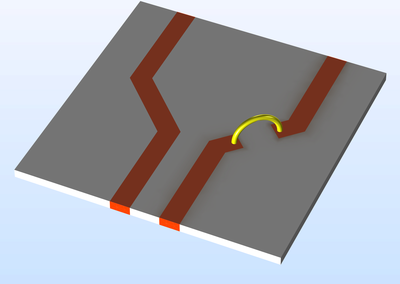

Mixed-mode S-parameters describe the responses of a circuit with balanced ports excited and terminated by two types of modes: common and differential modes. They are calculated using a full S-parameter matrix of a four-port network that is composed of four single ended lines. This example analyzes two adjacent microstrip lines and computes the mixed-mode S-parameters.
