Designing a Waveguide Diplexer for the 5G Mobile Network

Application ID: 18819


A diplexer is a device that combines or splits signals into two different frequency bands, widely used in mobile communication systems.

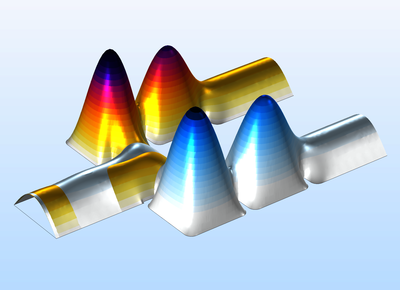

This model simulates splitting properties using a simplified 2D geometry. The computed S-parameters and electric fields at the lower and upper bands will show the diplexer characteristics in the Ka-band.
