Helicopter Swashplate Mechanism
Application ID: 14647
This model illustrates the operation of a swashplate mechanism used in helicopters to translate the input of helicopter flight control into the motion of the rotor blades, and hence controls the orientation of the rotor blades.

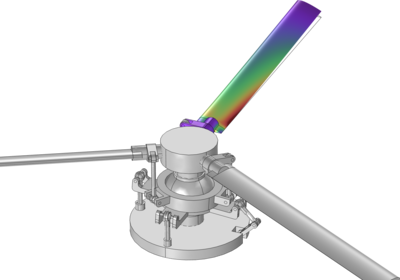

In this model, the rotor blades are modeled as either rigid bodies or flexible bodies in two different cases. All other components are assumed to be rigid bodies. Stress and deformation in the flexible rotor blades caused by the rotation and applied dynamic lift force are analyzed. An eigenfrequency analysis, where the mode shapes corresponding to the bending and torsion of the rotor blades are found, is also performed.
