Thermally Induced Creep

Application ID: 207


Creep is an inelastic time-dependent deformation which occurs when a material is subjected to stress at sufficiently high temperature, say 40% of the melting point or more.

Experimental creep data (using constant stress and temperature) often display three different types of behavior for the creep strain rate as function of time:

  • In the initial primary creep regime the creep strain rate decreases with time.
  • In the secondary creep regime the creep strain rate is almost constant.
  • In the final tertiary creep regime the creep strain increases with time until a failure occurs.

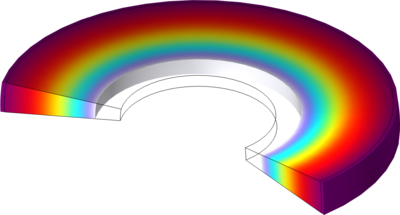

This model computes the stress history over a long time for a material that exhibits creep behavior. The model is taken from NAFEMS Understanding Non-Linear Finite Analysis Through Illustrative Benchmarks. The displacement and stress levels are compared with the values given in the reference.

This application was built using the following:

Nonlinear Structural Materials Module

The combination of COMSOL® products required to model your application depends on the physics interfaces that define it. Particular physics interfaces may be common to several products (see the Specification Chart for more details). To determine the right combination of products for your project, you should evaluate all of your needs in light of each product's capabilities, consultation with the COMSOL Sales and Support teams, and the use of an evaluation license.
