Three-Port Ferrite Circulator
Application ID: 968
A microwave circulator is a multiport device in which a wave incident on Port 1 is coupled only into Port 2; a wave incident on Port 2 is coupled only into Port 3; and so on. Circulators are used to isolate microwave components, for example, to couple a transmitter and a receiver to a common antenna. They typically rely on anisotropic materials, most commonly ferrites.

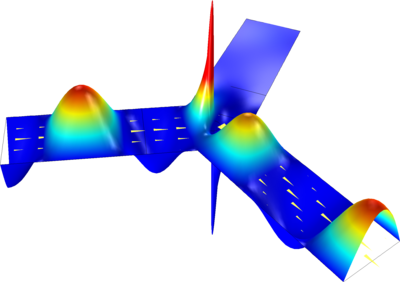

This model simulates the transmission of a 10-GHz TE10 wave through a lossless 3-port ferrite circulator. The simulation includes an S-parameter analysis using features in the RF Module.
This application was built using the following:RF Module
The combination of COMSOL® products required to model your application depends on the physics interfaces that define it. Particular physics interfaces may be common to several products (see the Specification Chart for more details). To determine the right combination of products for your project, you should evaluate all of your needs in light of each product\'s capabilities, consultation with the COMSOL Sales and Support teams, and the use of an evaluation license.
