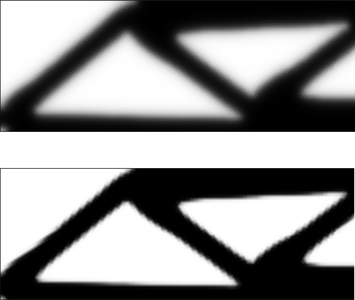

Topology Optimization of an MBB Beam
Application ID: 7428
A demonstration of topology optimization using the Structural Mechanics Module and the Optimization Module. Three classical models are shown, the loaded knee, the Michell truss structure, and MBB beam. The optimization method is based on using the SIMPS approach to recast the original combinatorial optimization problem into a continuous optimization problem.
This model example illustrates applications of this type that would nominally be built using the following products:Optimization Module
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Spezifikationstabelle and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
